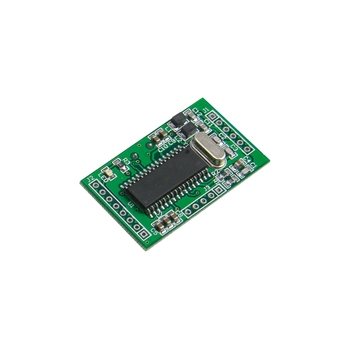

圖威 FC-R550型 IC卡讀寫模塊

銷售價：
商品評分： (共0人評論)

貨品編號：

P53B7A7C33DAA8

品牌：

圖威

數量： -+ 個
此商品已下架，看看其他商品吧收藏

該貨品暫時缺貨，請在下面輸入您的郵箱地址或手機號碼，當我們有現貨供應時，我們會發送郵件通知您！

商品詳情

品牌：圖威
所屬分類：門禁其他配件

<a title="產品概述" class="maxMapPoint"></a>
<table width="790" border="0" align="center" cellpadding="11" background="http://www.mc566806.net/public/images/1d/61/d2/7e298f0a88707850b9b599e64f23e39b.jpg?1387353571#w"> <tbody><tr><td height="39" valign="middle"><font face="黑體" color="#f3f3f3" size="5">1  產品概述</font><span style="text-align: center;"> </span></td></tr></tbody></table>
<div><table align="center" style="border-collapse: collapse; border-spacing: 0px; width: 790px; color: rgb(102, 102, 102); font-family: Arial, Verdana, 宋體b8b體; font-size: 12px; line-height: 18px; background-color: rgb(255, 255, 255);">
<tbody>
    <tr><td style="border: 1px solid rgb(221, 221, 221);padding:10px; text-align: left;">
<p><span id="3pvjlll"    class="Apple-tab-span" style="white-space:pre">	</span>圖威安防商城提供 FC-R550型IC卡讀寫模塊在線咨詢與銷售，F(xiàn)C-R550型IC卡讀寫模塊的效果與評測請與客服聯系咨詢。</p>
<p><span id="htvlhzj"    class="Apple-tab-span" style="white-space:pre">	</span>圖威 FC-R550型IC卡讀寫模塊是圖威項目類產品，涉及到工程項目備案保護。圖威項目產品需要訂購，出貨時間約1~7個工作日，如需購買請聯系客服。</p>
<div style="text-align: center;"><img alt="圖威 FC-R550型IC卡讀寫模塊" width="250" height="250" src="http://www.gzfcard.com/uploads/20122251120464437045.jpg"></div>

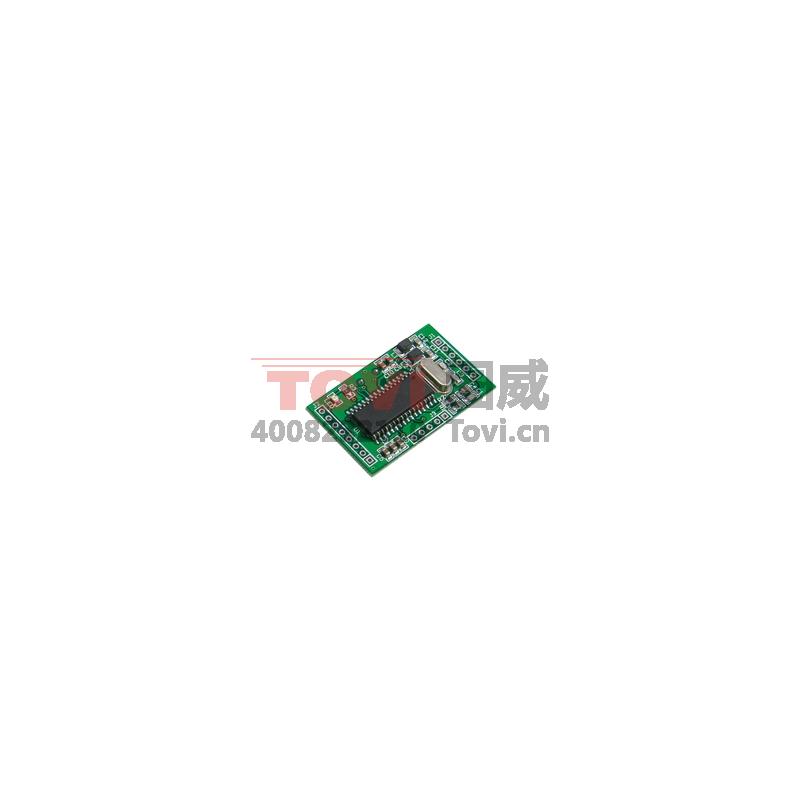

<p align="center">FC-R550型IC卡讀寫模塊</p>
<br/>
<p><strong>一、產品簡介：</strong></p>
<p>    FC-R550型IC卡讀寫模塊是基于13.56MHz頻率的模塊產品，它符合ISO14443標準，可支持mifare1 S50/S70、mifare0 ultralight、mifare Pro、mifare desfire系列IC卡，F(xiàn)C-R550采用四層電路板設計，雙面表貼工藝，EMC性能優良，運用PHILIPS高集成度讀卡芯片MFRC500，內置看門狗電路，支持WEIGEND26、232、485等通信協議選擇，支持DC5V工作電壓，該模塊采用超小型、超大規模集成電路封裝，具有易用、可靠、多樣和體積小等特點可幫助您方便、快捷地將當今最流行的非接觸式IC卡技術融入您的系統中。</p>
<br/>
<p><strong>二、技術參數</strong></p>
<p>電源電壓：DC 5V</p>
<p>工作電流：100 - 120 mA</p>
<p>通信方式：WEIGEND26、TTL232與RS485</p>
<p>工作頻率：FREQ 13.56MHZ</p>
<p>有效距離：DIS 0-100 mm</p>
<p>解碼時間：TDEC 65- 100 ms</p>
<p>工作溫度：TOPR 0~+70 ℃</p>
<p>貯藏溫度：TSTR  -25~+90 ℃</p>
<p>尺寸大?。?1.5MM×22 MM ×8 MM</p>
<p>支持卡片: 支持Mifare1兼容格式IC卡</p>
</td></tr></tbody></table>
<br/>
<a title="管腳說明" class="maxMapPoint"></a>
<table width="790" border="0" align="center" cellpadding="11" background="http://www.mc566806.net/public/images/1d/61/d2/7e298f0a88707850b9b599e64f23e39b.jpg?1387353571#w"> <tbody><tr><td height="39" valign="middle"><font face="黑體" color="#f3f3f3" size="5">2  管腳說明</font><span style="text-align: center;"> </span></td></tr></tbody></table>
<table align="center" style="border-collapse: collapse; border-spacing: 0px; width: 790px; color: rgb(102, 102, 102); font-family: Arial, Verdana, 宋體b8b體; font-size: 14px; line-height: 18px; background-color: rgb(255, 255, 255);">
<tbody>
    <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; "><strong>管腳</strong></td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; "><strong>符號</strong></td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; "><strong>描述</strong></td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J1-1</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">GND</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">地</td>
        <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J1-2</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">TX1</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">天線發送1</td>
        <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J1-3</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">GND</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">地</td>
        <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J1-4</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">TX2</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">天線發送2</td>
        <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">?J1-5</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">GND</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">地</td>
        <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J1-6</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">RX</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">天線接收</td>
        <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; " rowspan="2">J2-1</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; " rowspan="2">RLED</td>
    <td bgcolor="#CCCCCC" style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; "><strong>類型</strong></td>
        <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">輸出紅色發光管驅動信號</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">低電平有效</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J2-2</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">GLED</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">輸出綠色發光管驅動信號</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">低電平有效</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J2-3</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">BZ</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">輸出蜂鳴器信號輸出　</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">外接蜂鳴器驅動電路</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J2-4</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">VCC PWR</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">電源正端　</td>
     <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J2-5</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">RST</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">復位手動復位端　空</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">低電平有效可懸</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J2-6</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">GND PWR</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">電源負端　</td>
     <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">/</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J2-7</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">DATA0</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">輸出數據</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">0 輸出</td>
  </tr>
  <tr>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">J2-8</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">DATA1</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">輸出數據</td>
    <td style="border: 1px solid rgb(221, 221, 221); line-height: 2; padding: 0px 10px; font-weight: 300; text-align: left; ">1 輸出</td>
  </tr>
  </tbody>
  </table>
<br/>
  <div   id="frlbhld"   class="mod article-main">
    <div   id="3f53vzx"   class="mod-title">
      <h2>圖威 FC-R550型 IC卡讀寫模塊相關資料</h2>
    </div>
<div   id="n95btvl"   class="mod-content">
      <p class="article-time">資料下載：暫無信息</p>
